LEADER: The standard helical fan coil

The LEADER fan heater is designed for heating or air conditioning any industrial or commercial environment, in fact, the care taken over the design also allows it to be used in prestigious environments.

The LEADER has an electrical protection rating of IP 44, IP 54 and a filter < 10 microns for purification from suspended dust, and is available in 10 models with different flow rates and air throw speeds.
This makes it possible to meet environmental compliance requirements for all kinds of activities.

MODELS

Leader 15 (hot only)
Leader C 15 (hot/cold)

Total heat output
in hot mode, up to 17.4 kW
in cold mode, up to 6.5 kW

Air flow rate 1,900 m3/h

Leader 25 (hot only)
Leader C 25 (hot/cold)

Total heat output
in hot mode, up to 28.2 kW
in cold mode, up to 7.9 kW

Air flow rate 2,750 m3/h

Leader 35 (hot only)
Leader C 35 (hot/cold)

Total heat output
in hot mode, up to 46.8 kW
in cold mode, up to 16.3 kW

Air flow rate 3,800 m3/h

Leader 45 (hot only)
Leader C 45 (hot/cold)

Total heat output
in hot mode, up to 58.6 kW
in cold mode, up to 19.4 kW

Air flow rate 5,500 m3/h

Leader 70 (hot only)
Leader C 70 (hot/cold)

Total heat output
in hot mode, up to 80.4 kW
in cold mode, up to 26.7 kW

Air flow rate 11,500 m3/h

CHARACTERISTICS

The LEADER series of indoor fan coil units are designed for heating and air conditioning any industrial and commercial environment, in fact, the care taken over the design allows them to be inserted even in prestigious environments.
The LEADER with IP 44, IP 54 electrical protection rating and < 10 micron filter for purification from suspended dust, is available in 10 models with different flow rates and air throw speeds.

The LEADER C version, also combined with a cooling unit (electric chillers, absorbers), is optimally suited for air conditioning, as well as for heating industrial and commercial spaces.
For this reason, LEADER C is placed in the category of superior thermo-ventilating units. In particular, the LEADER C model develops a cooling power of approximately 30 kW, and an air throw of up to 25 m; it allows the summer requirements of rooms requiring high volumes of air to be satisfied, while using fewer units and guaranteeing the customer significant savings and optimal comfort.

This allows environmental compliance requirements to be met for all types of activities.

Main characteristics

  • Available in 10 models, they make it possible to proportion the throws, speed and volumes of treated air according to the specific needs of each individual plant
  • Combined with CLIMAIR COND heat generators with external probe and sliding temperature on the exchanger, they reduce the stratification coefficient inversely to the increase in internal temperature
  • LEADER units are prepared for both wall and ceiling installation
  • They can be equipped with variable speed control to adjust the plant’s start-up times or compensate for continuous extractions
  • Complete availability of control and management panels for every type of application

Technical characteristics

  • Leader casing in ABS and galvanised steel
  • Leader prepared for wall or ceiling installation
  • Vertical air outlet orientation
  • Dual speed fan with variable air flow at minimum speed
  • Leader degree of protection IP54

Optionals

  • Leader also available in LEADER C version (not ceiling mounted)
  • Bi-directional orientation of outlet air
  • Filter for purification from suspended dust
  • Flexible boiler-thermal fan connection kit
  • Electrical expansion panel for controlling more than one LEADER

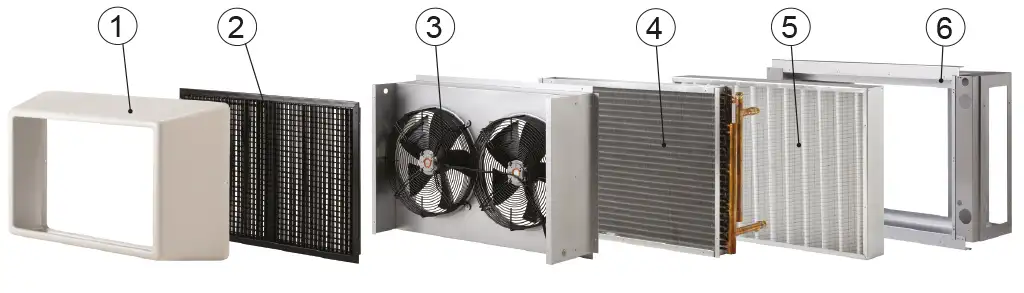

  1. ABS LEADER casing
  2. Vertical outlet air grille (standard) or bi-directional (optional)
  3. Condensate collection tray (for C version)
  4. Dual-speed fan with variable air flow at minimum speed
  5. Copper and aluminium exchanger with very high efficiency and quality
  6. Up to 6 micron efficiency filter for purification of suspended dust (optional)
  7. Supporting structure made of galvanised steel and with quality materials and components
