DUALTOP is a STANDARD CENTRIFUGAL SPLIT HEATING SYSTEM
The system basically consists of the combination of:
The DUALJET system is designed for heating any industrial and commercial environment, and is ideal for ducted air distribution.
The DUALJET is available with heat outputs of 32 kW, 47 kW, 65 kW, 94 kW, 107 kW, and offers a high average seasonal efficiency.
The wall-mounted condensing boiler has an IPX5D degree of protection and the fan heater IP54
The supporting structure with an ABS and painted steel shell for the fan heater, and ABS and painted INOX steel for the external boiler, both guarantee robustness and solidity.
The condensing boiler is equipped with a class 5 and 6 premixed low NOx burner. An electronic control unit manages automatic modulation of the thermal load and variable speed ventilation with high air flow rates.
MODELS
DualJet 30
1 configuration
Rated heat capacity (HI) 32 kW
Air flow rate from 3.300 m3/h
DualJet 50
2 configurations
Rated heat capacity (HI) 47 kW
Air flow rate from 6.600 m3/h
DualJet 70
3 configurations
Rated heat capacity (HI) 65 kW
Air flow rate from 6.600 to 9.900 m3/h
DualJet 100
4 configurations
Rated heat capacity (HI) 94 kW
Air flow rate from 6.600 to 13.200 m3/h
DualJet 115
4 configurations
Rated heat capacity (HI) 107 kW
Air flow rate from 9.900 to 19.800 m3/h
CHARACTERISTICS
The DUAL JET split system consists of a wall-mounted ‘CLIMAIR COND’ high-efficiency condensing boiler for outdoor use, combined with one or more ‘LEADERJET’ fan heaters to be installed, also in combination with air diffusion ducts, in the room to be heated.
The package includes:
- CLIMAIR COND wall-mounted condensing boiler
- On-site flue gas exhaust kit
- LEADERJET indoor fan heater(s)
- External probe for climatic compensation
- Dual-speed room thermostat kit
Various possible configurations with 5 types of boilers and 2 types of fan heaters
The DUALJET split system heats quickly thanks to a low thermal inertia of the condensation boiler exchanger
Boiler features
- Outdoor MURAL condensing boiler
- On-site flue gas exhaust kit
- Dual speed room thermostat kit
- External probe
- Climair casing in ABS and painted steel (Mod. 45, 70) or stainless steel (Mod. 35,100, 115)
- High efficiency ⭐⭐⭐⭐⭐
- Equipped with safety devices
- Frost protection
- Climair IPX5D degree of protection

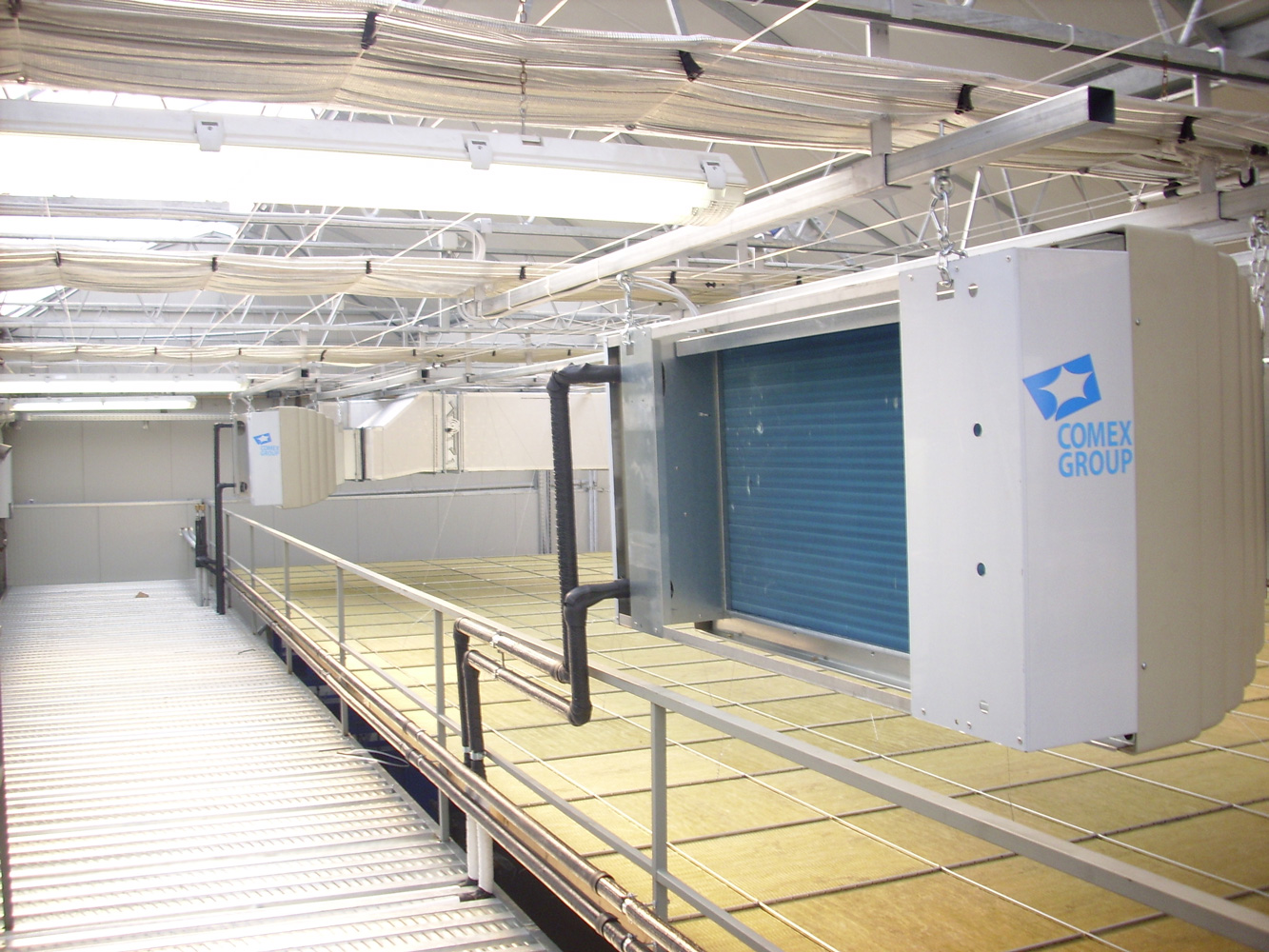

Indoor unit characteristics
- Leaderjet casing in ABS and galvanised steel
- Leader prepared for wall installation

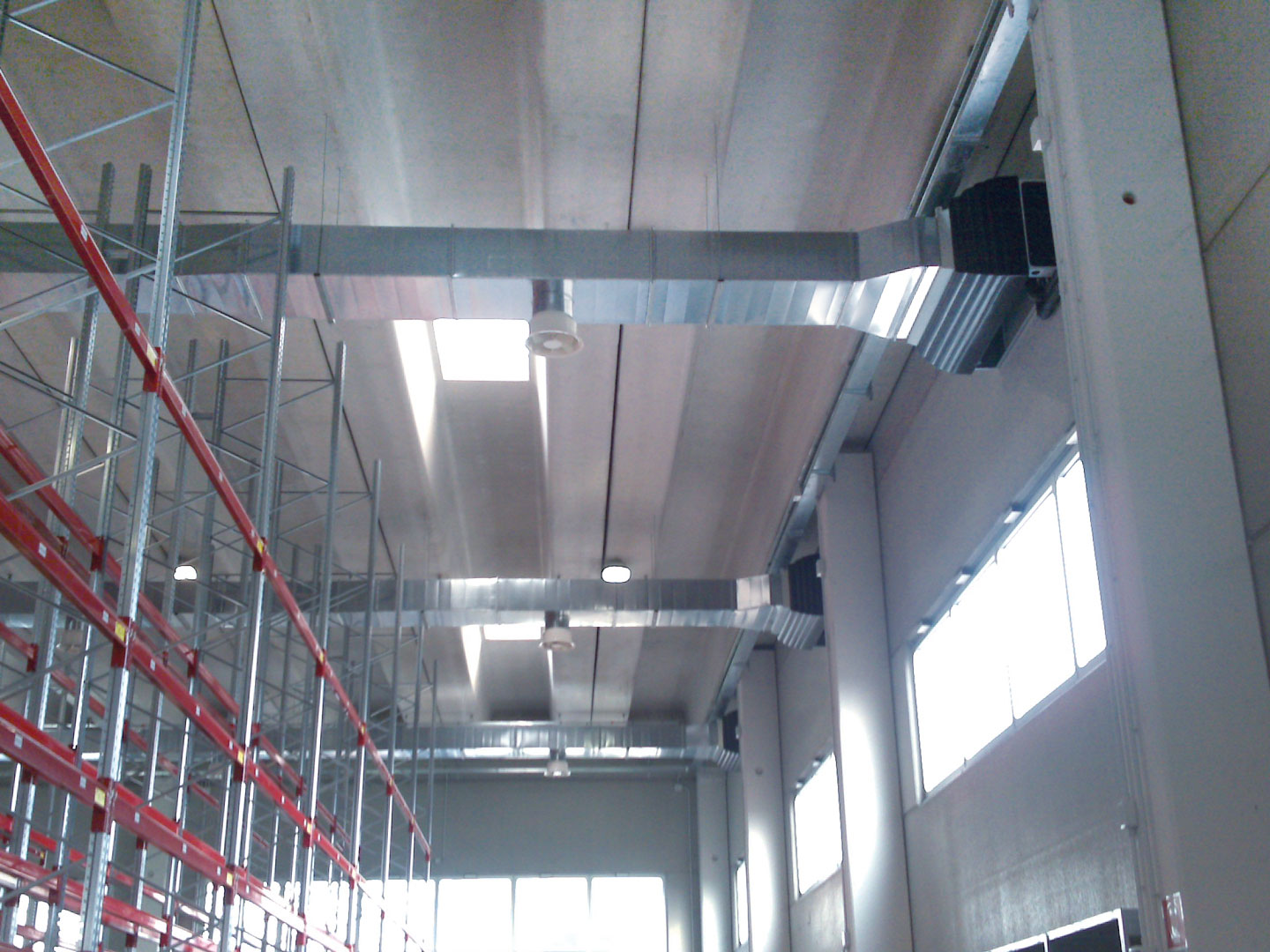

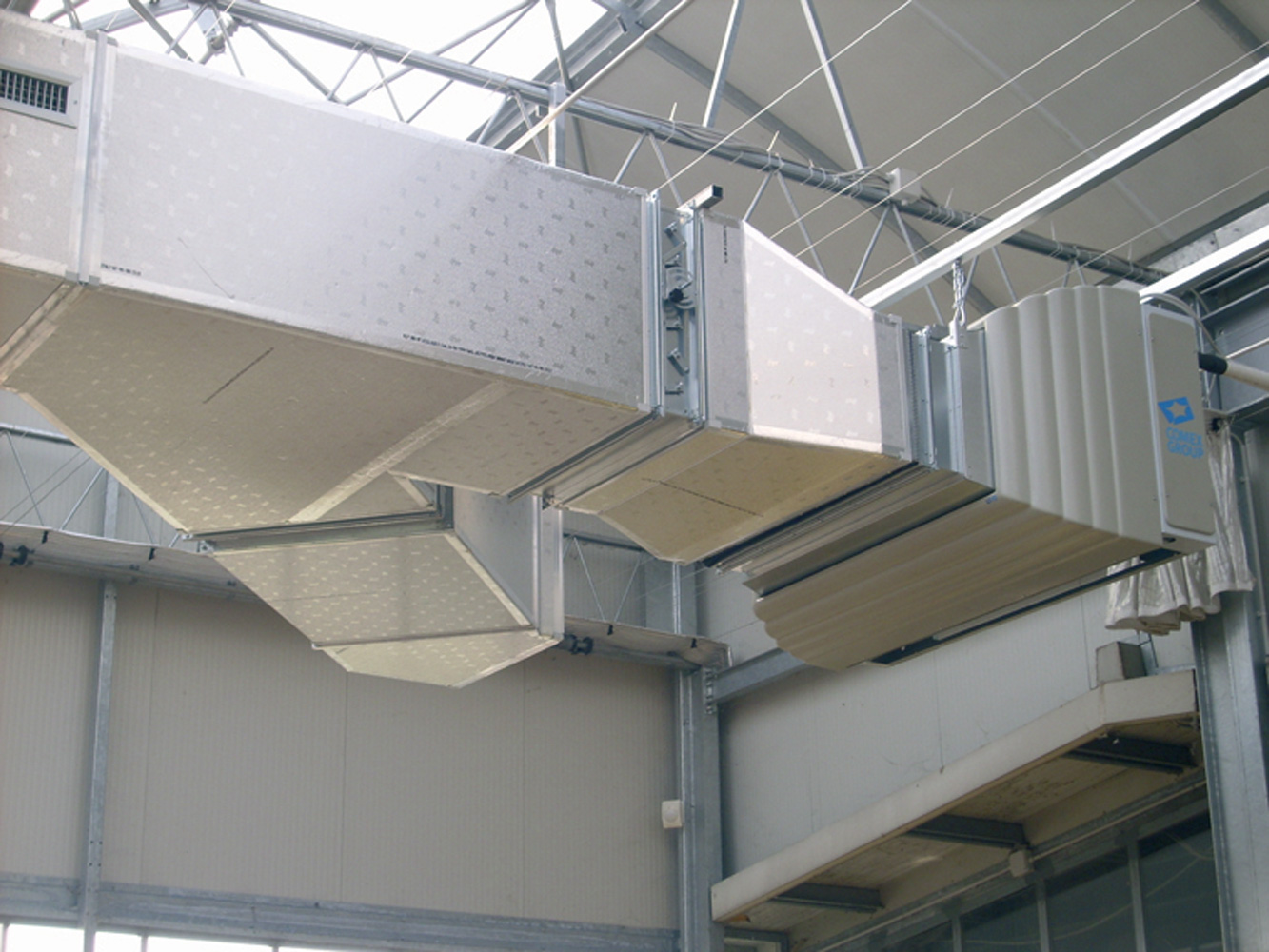

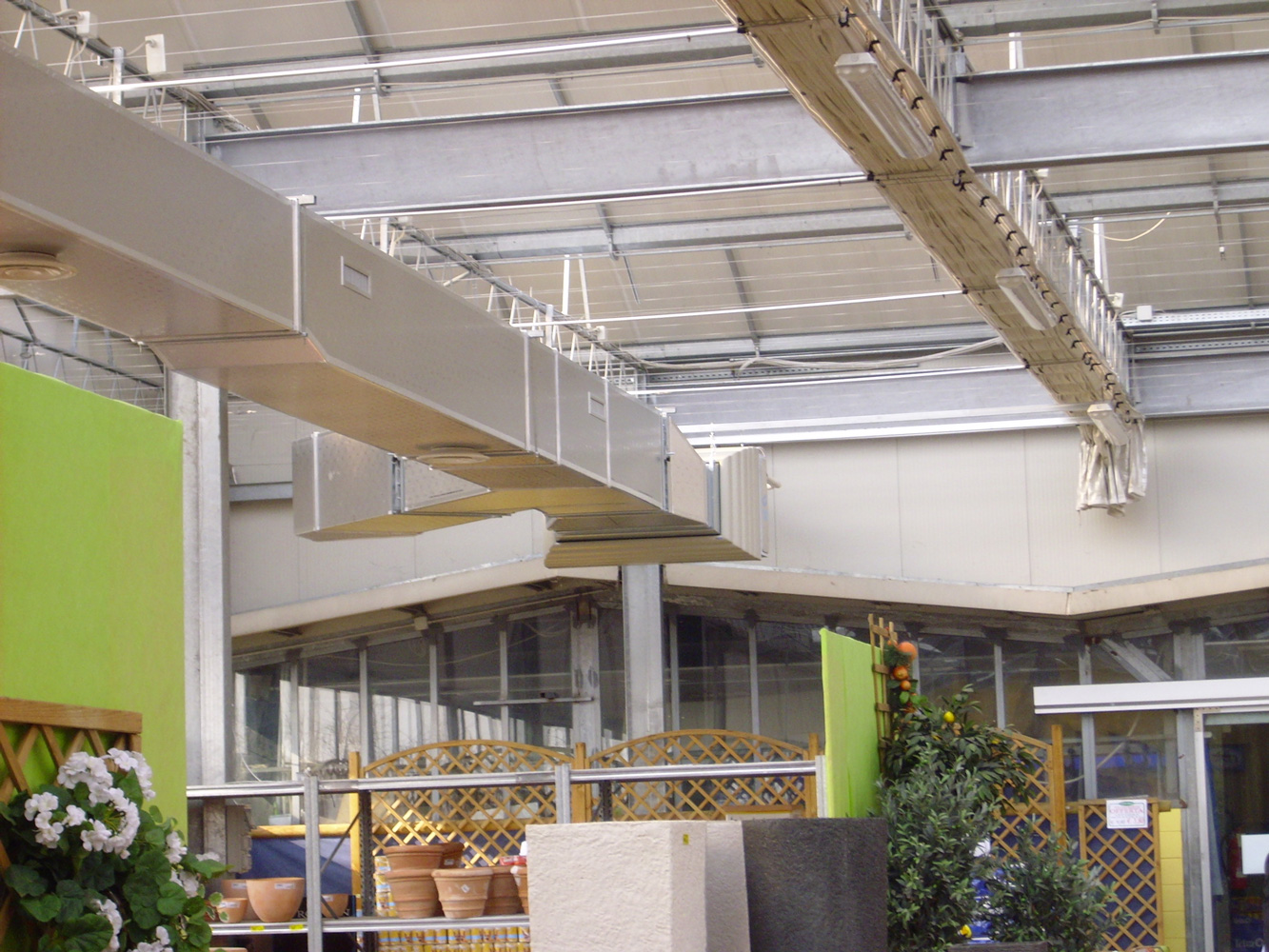

- LEADERJET are ideal for air distribution with rectangular or circular fabric and polyethylene distribution ducts
- Dual-speed fan with variable air flow at minimum speed
- High air flow rates
- Flanged plenum discharge connection for easy connection
- LeaderJet IP55 degree of protection
Optionals
- Filter for purification from suspended dust
- Flexible boiler/heater connection kit
- Electrical expansion panel for controlling several LeaderJets
